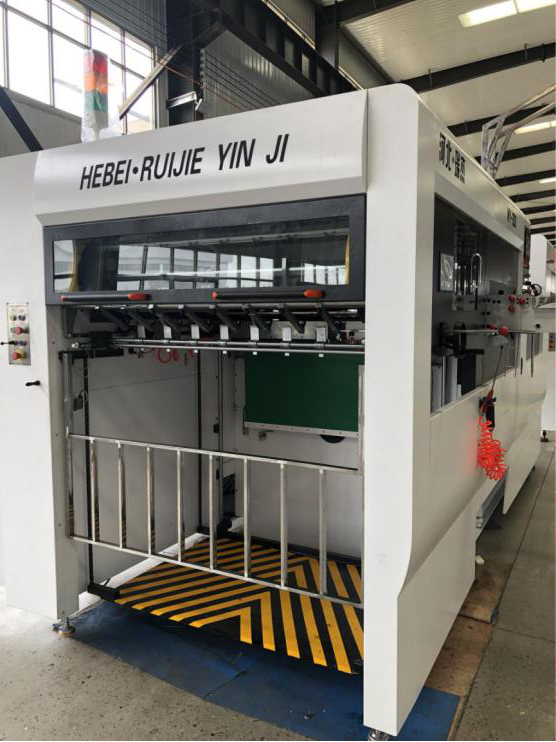

SEMI-AUTOMATIC DIECUTTING AND CREASING MACHINE

short description:


Product Detail

Product Tags


System introduction



Feeding and Collecting Part

l Whole machine is risen making the maximum front pile height up to 1400mm and the back pile height up to 1250mm

l At the middle of head install the monitor worker can easily see the back

l Pre-paper pile design and special pneumatic bench can save much time

The non-stop sampling system can check the board accurate

Main body

l Adopt automatic centralized lubricating system and setting main chain lubricating system by HMI

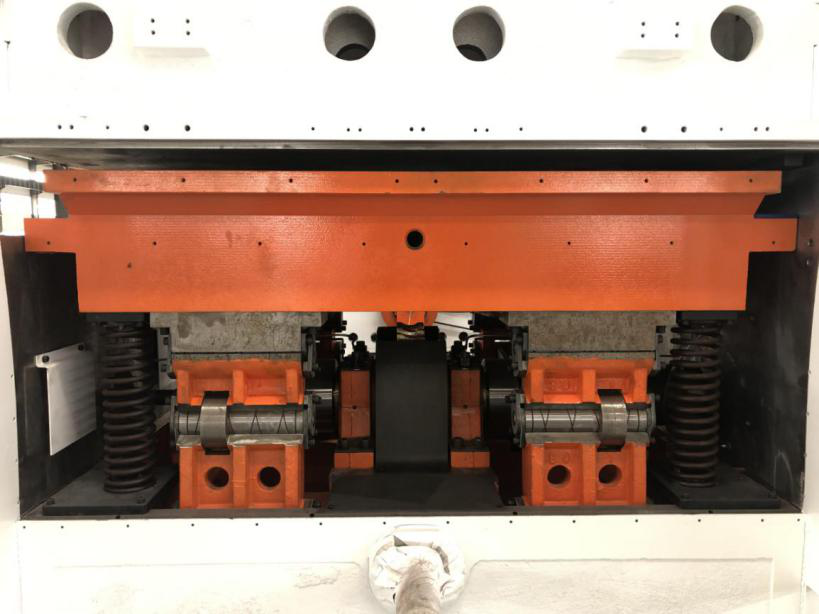

l Patented design shock absorption system can prolong the life of main body and increase the pressure

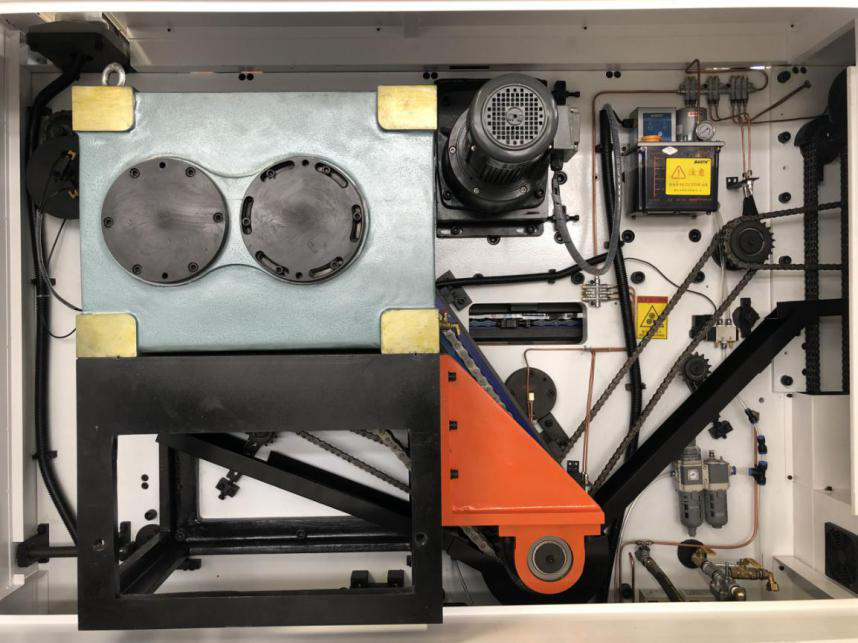

l The intermittent gearbox made in Taiwan can assure the accurate registration and decrease the gripper attack

Diecutting part and Delivery system

l Diecutting chase fixed accurately by pneumatic lock system

l Diecutting plate is putted in and out by air floating device

l Electric clutch system of main chain can assure the chain steady when it is stopped at high speed

l Main chain and assist chain is lubricated periodically controlled by PLC

l Protection window of diecutting can hold the main body clean

l Lightweight and durable aluminum alloy  gripper bars with chain of Renold UK or IWIS GERMANY ensure accurate.



Item Parameters
Model BMY-1300
Die cutting type Pressed flat die cutting(Lower side is movable while upper side is unmovable)
Max paper transmitting size 1320*980mm
Min paper transmitting size 400*500mm
Max die cutting size 1300*960mm
Min gripper size 8mm
Max die cutting pressure 350N/cm²
Paper processed Cardboard        200-2000 gsmCorrugated board  ≦ 10mm
Max die cutting speed 4600 sheets/h
Max feeding pile height 1400mm(above the level)
Min feeding pile height 1250mm(above the level)
Main motor power 11 kw
Total power ~13.5 kw
Total weight ~13.5 T
Overall size 4500*2300*2250mm(without platform and pre-paper)
6500*4300*2250
